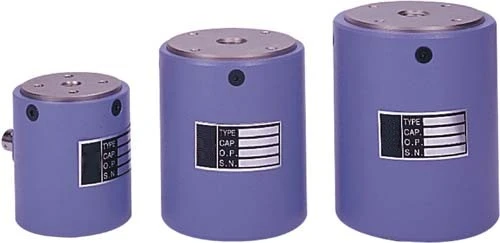

LSU-RS型傳感器的秤量從
|
|
|
|
|
|
|
|||||||
|
型號 Type |
LSU-RS-2Kg | LSU-RS-5Kg | LSU-RS-10Kg | LSU-RS-20Kg | LSU-RS-50Kg | LSU-RS-100Kg | LSU-RS-200Kg |
|
額定載荷 Maximum capacity |
2Kg | 5Kg | 10Kg | 20Kg | 50Kg | 100Kg | 200Kg |
|
彈性體材質 Material |
Alloy steel | ||||||
|
推荐激勵電壓 Recommended excitation |
10V | ||||||
|
最大激勵電壓 Maximum Excitation |
15V | ||||||
|
輸出靈敏度 Rated output (=RO) |
1 ± 0.01 mV/V | ||||||
|
零點範圍 Zero balance |
± 0.05%RO | ||||||
|
蠕變(20min) Creep error (20 minutes) |
± 0.05%RO | ||||||
|
重復性 Repeatability |
± 0.05%RO | ||||||
|
輸入阻抗 Repeatability |
390 ± 3Ω | ||||||
|
輸出阻抗 Output resistance |
350 ± 5Ω | ||||||
|
溫度補償範圍 Compensated temperature range |
-10 ~ 40℃ | ||||||
|
允許使用溫度範圍 Operating temperature range |
-10 ~ 50℃ | ||||||
|
溫度對輸出靈敏度的影響 Temperature effect on output |
0.026%Load/10℃ | ||||||
|
溫度對零點輸出的影響 Temperature effect on zero |
0.026%RO/10℃ | ||||||
|
安全過載範圍 Safe load limit |
150%of rat. cap. | ||||||
|
極限過載範圍 Ultimate load |
200%of rat. cap. | ||||||
|
防護等級 Protection class |
IP 66 | ||||||
|
|
||
|
|
